POLYGRACE

It is a film developed for cushioning material. Low modulus and low elasticity that it has, make it extremely easy to stretch and excellent followingness. Furthermore, this film has heat sealing property with different material such as corrugated paper.

Based on polyolefin, we developed a film "POLYGRACE" which has properties such as high stretch and followability, heat sealability with corrugated paper. Polyurethane film has been mainly used for cushioning material until now, but the POLYGRACE can be a substitute for polyurethane!

Characteristics & Uses

1Easy to stretch

You can easily stretch the film with a slight force. 40μm thickness "POLYGRACE NEO" is lower modulus than 25 μm polyurethane (MG90)! Even bulky contents can be easily packed.

Comparative tension test

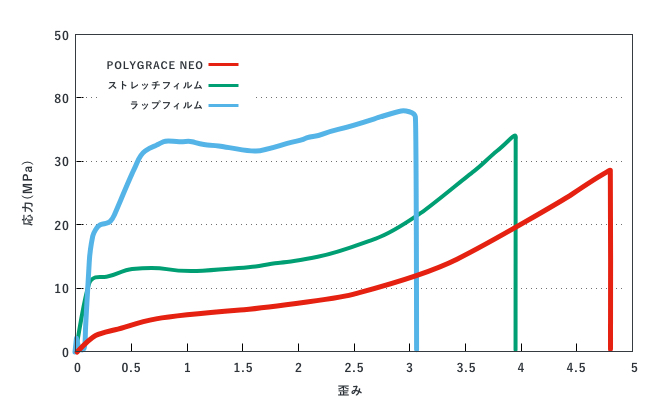

S-S curve

This is a curve showing the relation between stress and strain until each material is destroyed by applying external force to both ends with a tensile tester

S-S curve

Measurement condition;each film 15mm wideness, 40mm between chucks, 200mm/min tensile speed, n=3
※The above is a measured value and not a standard value.

50% modulus value

This is the result of measuring the force required to stretch each film by 50% (For example, stretching a 100 mm length film to 150 mm).
A smaller value shows that it can be stretched with a slight force, which means that it is a "soft" and "easy to stretch" film.

50% modulus value

Measurement condition;each film 15mm wideness, 40mm between chucks, 200mm/min tensile speed, n=3
*All Machine direction of film. The above is a measured value and not a standard value.

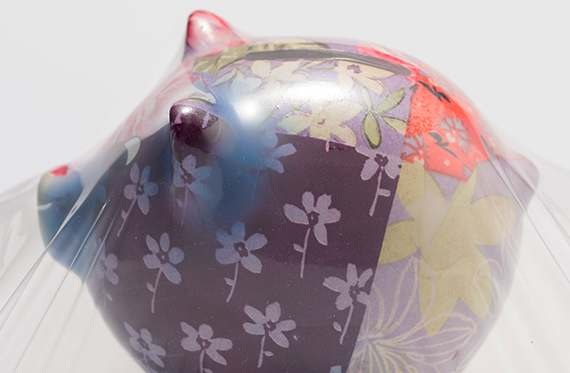

2Followingness

追従性

Feeling similar to wrap film and stretch film, and outstanding softness!
It fits perfectly to the shape of the uneven contents and it is possible to hold the contents.

3Recovery elasticity

Be backing (returning) force (= recovering elasticity) after stretching the film is also superior to general polyolefin film.

Recovery rate

Each samples were stretched by 50%, 100%, 200%, 300% for each 15 mm wideness films, and the elongation to length before loading was measured when the load was freed after 5 minutes. The smaller value, the better recovery elasticity.

name Thickness
(μm)
Direction 50% 100% 200% 300%
POLYGRACE NEO 40 MD 102 114 166 254
TD 103 111 166 238
100 MD 103 115 163 235
TD 101 117 175 239
POLYGRACE-V 60 MD 102 120 199 302
TD 103 116 191 283
100 MD 103 119 191 281
TD 103 117 192 264
Polyurethane
Tourh Grace Film
25 MD 101 103 109 134
TD 101 102 107 135
100 MD 101 103 109 125
TD 100 104 108 128
General PE (LLDPE) 40 MD 116 141 204 278
TD 116 134 254 314
Stretch film 18 MD 107 133 201 -
TD 108 150 223 305

*「-」means that film was torn.
*The above is a measured value and not a standard value.

4Heat sealing property

Originally, a polyethylene film not having a polar group could not be thermally welded with a different material which is not thermally compatible. However, POLYGRACE available for heat welding of cardboard paper and film, you can make film cushioning material without any adhesives. Especially excellent heat sealability "POLYGRACE-V" series, welding is OK on both sides of the film.

5There is cost merit compared with polyurethane film!

olyurethane film that used to be as film cushioning material has great elasticity and puncture strength, but there was a cost problem. POLYGRACE got over the cost problem and be close to the performance of polyurethane film. Possibility to use has expanded greatly for applications such as "The price did not match well with one-way use only"

6High transparency

高透明性

"POLYGRACE NEO" series have high transparency, so you can show the contents of packaging beautifully. Easy & eco-friendly and beautiful packaging material is realized.

7Registered patent

POLYGRACE, which was developed by Takeda Sangyo with long experience and technology, was patent registered.

Product Specifications

Grade name Characteristics thickness(μm)
POLYGRACE NEO PG-NEO
  • High transparency
  • low modulus(stretch)
  • Recovery elasticity
40
100
POLYGRACE-V PG-V
  • Semitransparent
  • Heat sealing on both face(different material)
  • Surface tackiness(Not smooth)
60
100
Grade Stretch Recovery elasticity Tackiness property Appearance Heat sealing property for different material
POLYGRACE NEO
POLYGRACE-V
PolyUrethane film
(Tough Grace Film)

*It's negotiable in case of out of standard.

Property values

Name Direction Modulus(Mpa) Breaking
strength(Mpa)
Fracture
elongation(%)
Tear
strength(N/cm)
50% 100%
POLYGRACE NEO MD 5.32 6.86 18.7 610 299
TD 4.04 4.33 13.0 880 1976
POLYGRACE-V MD 7.90 10.60 24.2 435 1173
TD 6.20 6.70 29.0 737 3498

*Breaking strength, Elongation: 40mm between chucks, 200mm/min tensile speed, n=3
*Tear strength: Elmendorf method, n=3
*The above is a measured value and not a standard value.
